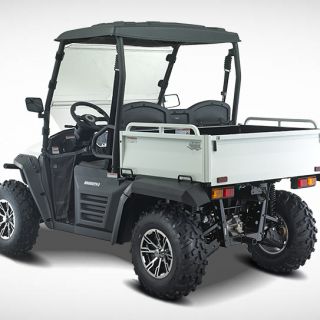

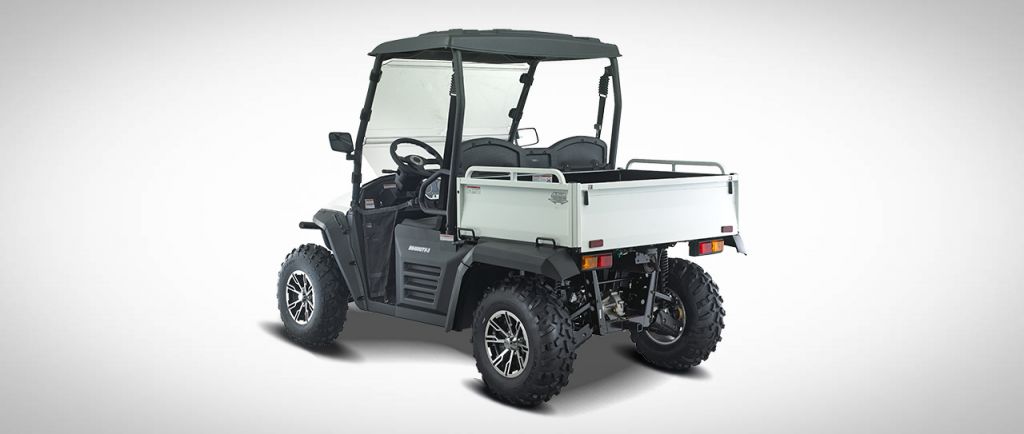

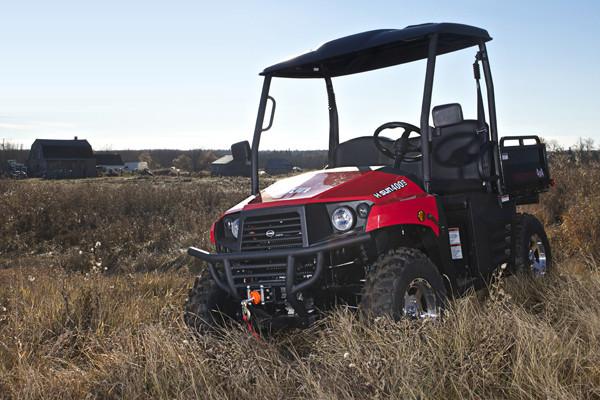

HS 400 UTILITY
HIGHLIGHTS:
ELECTRONIC FUEL INJECTION (EFI)
ON DEMAND 4-WHEEL DRIVE
STANDART DOORS
In the long run value is measured by performance and durability. Value is what the HS Series of Utility Vehicles have been delivering to enthusiasts world-wide since its introduction in 2006. The HS Series electronic fuel injected four-wheel-drive UTVs come in three different models/engine displacements; 400cc, 500cc, and 700cc.
Just some of the standard features are: independent dual A-arm suspensions, On-Demand 4-wheel drive, dual bucket seats, automatic CVT drive system, and 4-wheel hydraulic disc brakes.
SPECIFICATION:
Engine
Type: 4-Stroke- OHV / 1-Cylinder
Displacement: 393 cc
Bore and Stroke: 84.5 x 70
Compression Ratio: 9.3 : 1
Fuel System: Delphi EFI
Cooling: Liquid
Starting System: Electronic
Drive Train
Transmission: Automatic CVT
Drive System: On Demand 2WD / 4WD w/ Locking Differential - F N R
Final Drive: Shaft Drive
Chassis / Suspension / Brakes
Suspension Front: Independent dual A-arm with Anti-sway system
Suspension Rear: Independent dual A-arm with Anti-sway system
Brakes Front: Dual Ventilated Hydraulic Disc
Brakes Rear: Dual Ventilated Hydraulic Disc
Tires / Front: AT25 x 8 –12 Radial
Tires / Rear: AT25 x 10 –12 Radial
Dimensions
L x W x H: 105.5" x 59.86" x 73.6"
Wheelbase: 72.05"
Fuel Capacity: 6.8 Gallons
Vehicle Weight: 1168 lbs

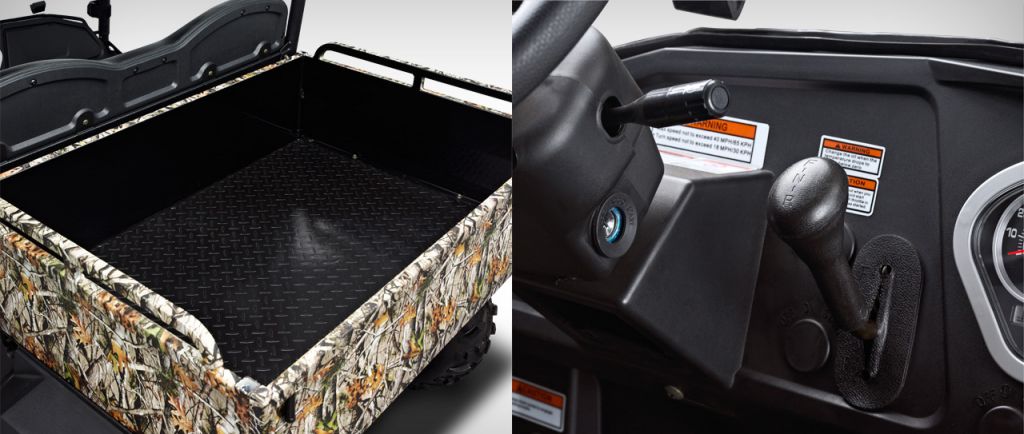

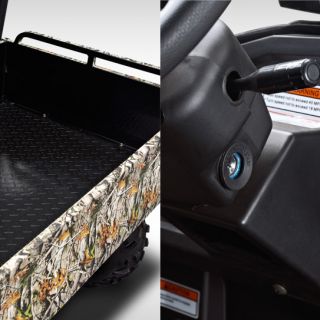

Cargo Bed Capacity: 350 lbs
Towing Capacity: 1200 lbs
Ground Clearance: 11"
Other

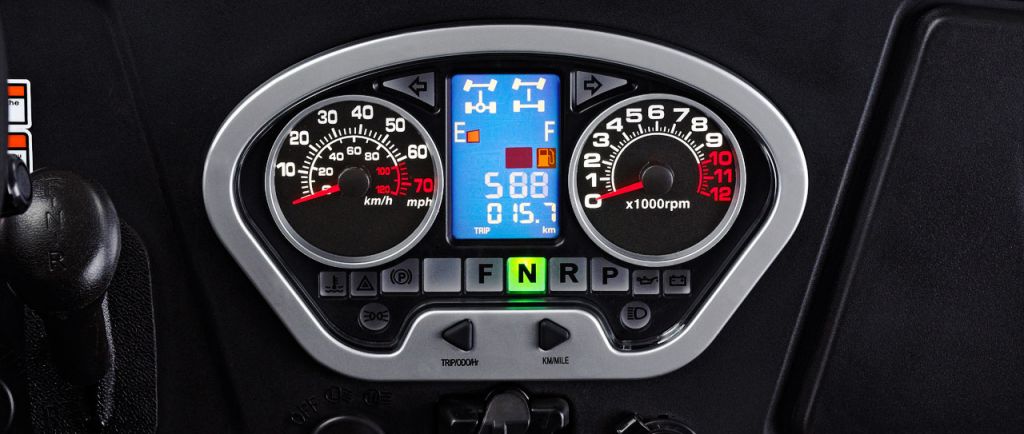

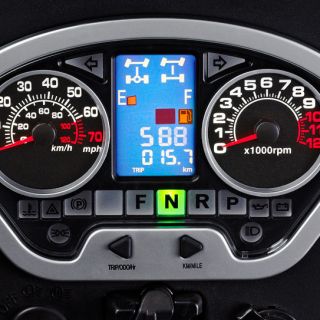

Instrumentation: Analog Display
Available Colors: White, Black, Blue, Red, Orange, Vista Camo
Accessories: 3500 lb Winch, Roof, Windshield, Aluminum Rims,
Increased Width for Stability
Compliance: EPA / CARB
